OpenMultiRAG is an industry-grade, realtime Retrieval-Augmented Generation (RAG) system built to handle multiple documents, complex conversational workflows, multimodal parsing (text + images), strict citation tracking, and intelligent caching.
The platform is designed using a robust microservices architecture encapsulated in Docker, ensuring seamless and resilient user experiences.

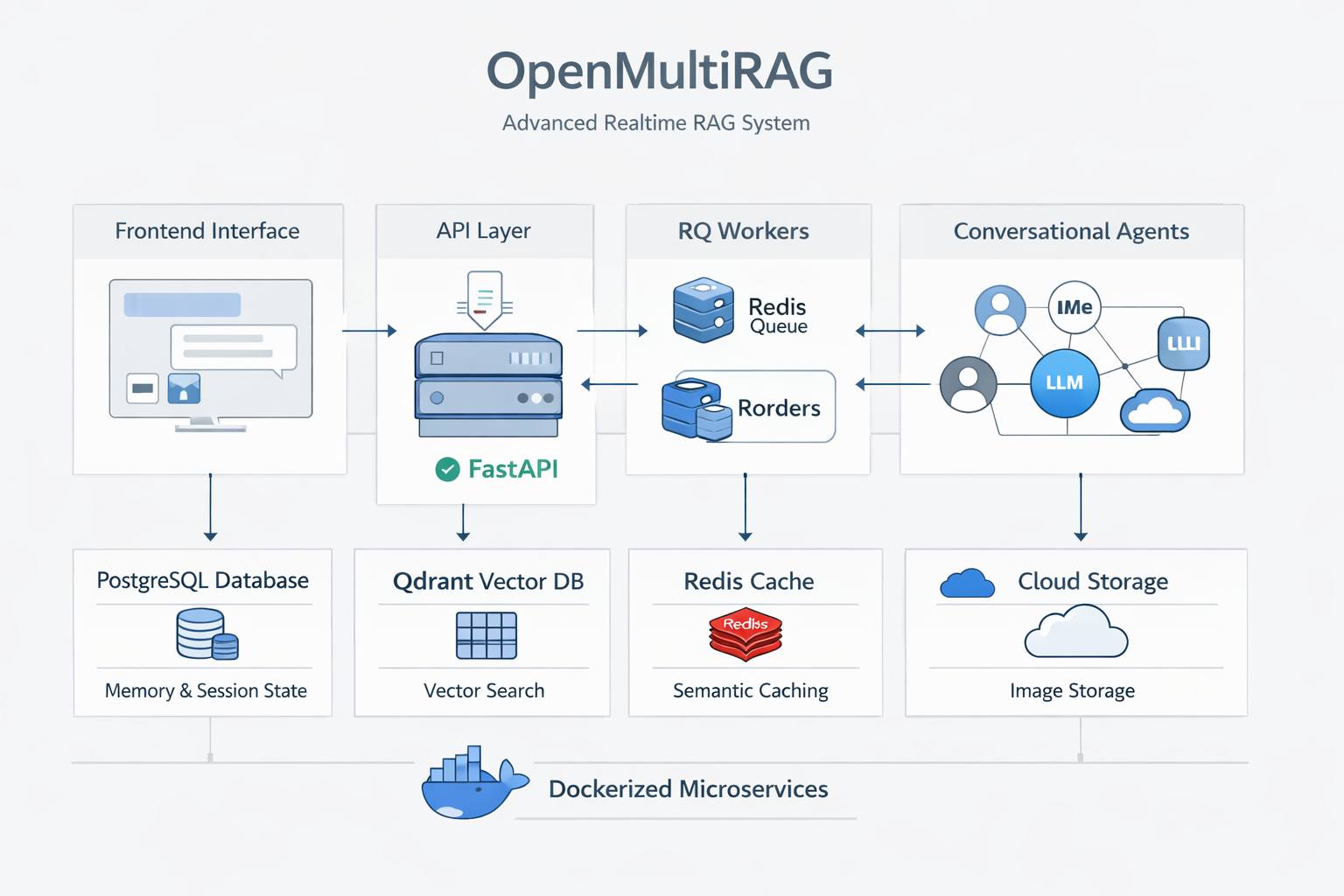

System Architecture
The project consists of several interconnected components running asynchronously:
- Frontend Interface (Streamlit): Provides a conversational UI for dynamic document uploads, real-time polling, and stateful chat, supporting queries across multiple active documents with citations.
- API Layer (FastAPI): The central router managing HTTP requests, tracking state via PostgreSQL, and delegating extraction to background workers.
- Background Worker (RQ + Redis): Offloads PDF extraction and vector embeddings asynchronously, utilizing PyMuPDF for concurrent parsing of text and images.
- Multi-Agent Conversational Workflow (LangGraph): The core intelligence handling Query Rewrite, Semantic Cache Checks, Intent Analysis, Retrieval, and Generation via Groq LLMs.
Key Features
Robust Memory & Session State: Leverages LangGraph's AsyncPostgresSaver integrated tightly with PostgreSQL for persistent thread-level memory, allowing seamless context restoration.
Smart Semantic Caching: Uses Redis as a highly efficient semantic cache layer. Identical document scope queries hit the cache, natively bypassing LLM generation to reduce latency and costs.
Asynchronous Multimodal Pipeline: Connects a ThreadPoolExecutor for concurrent layout parsing. Vision LLMs (Llama-3.2-Vision/Scout) caption embedded images, which are embedded as contextual text while raw images are stored safely in CloudFlare R2.
Bulletproof Source Tracking: A custom citation engine explicitly maps contextual chunks to output, rendering exact File and Page Numbers along with relevant images on the frontend.
Tech Stack
FastAPI, Streamlit, LangGraph, Groq (Llama-3.3-70b, Llama-3.1-8b, Llama-Vision), Qdrant, PostgreSQL, Redis, Langfuse, Docker
